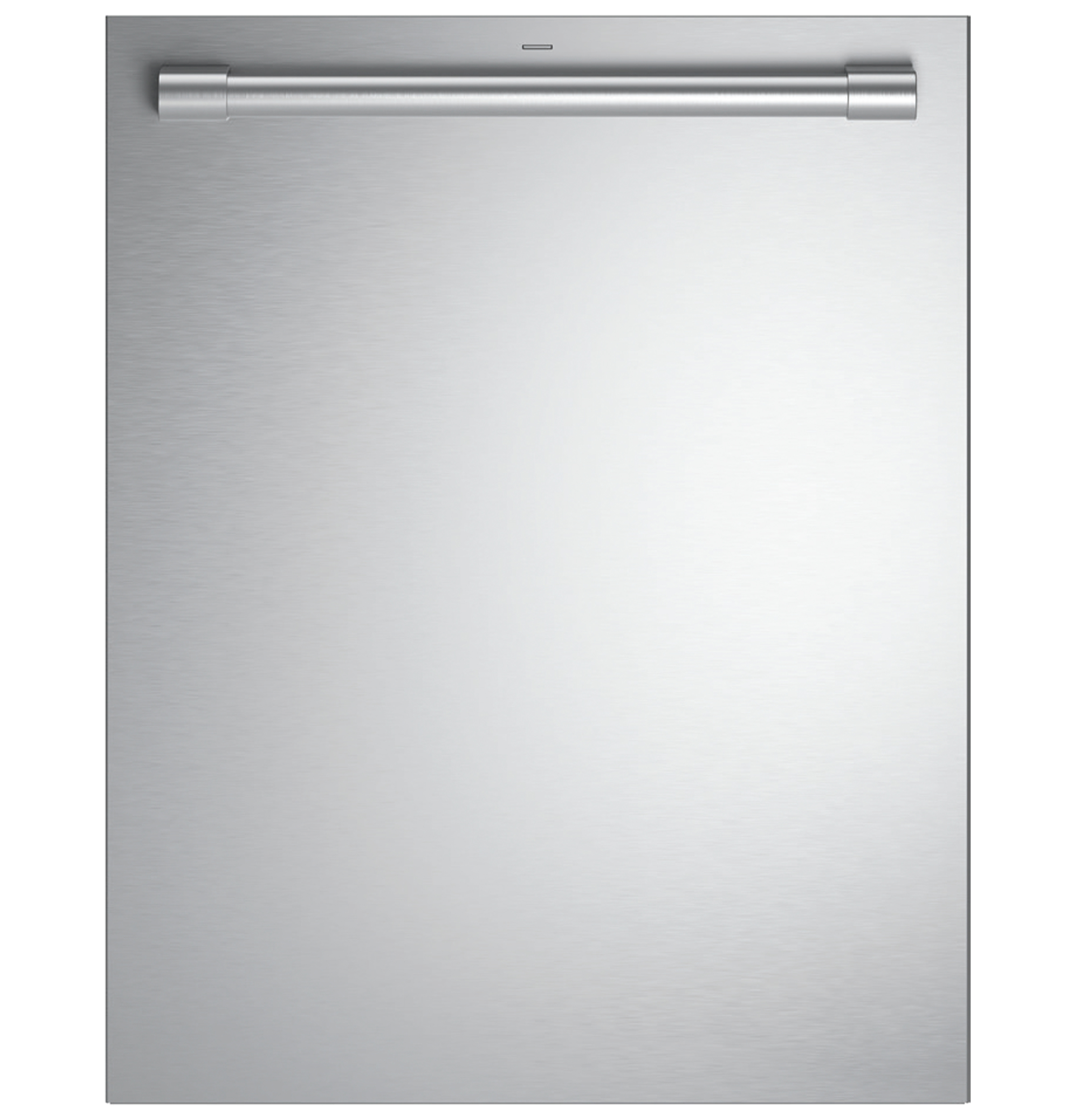

Monogram 24" Fully Integrated Dishwasher - Stainless Steel

42 dBA Quiet Operation

• Harmonizing power and serenity, engineered to deliver flawless cleaning at a quiet 42 dBA in Normal Cycle

Flush Installation Capability

• Dishwashers designed to fully integrate and be installed flush, even with inset cabinetry

Third Rack

• The expansive third rack provides the perfect space to clean utensils and serve ware

Advanced Wash System

• Achieve a pristine clean, using over 70 powerful wash jets to deliver a 360 clean, reaching all corners of the dishwasher

Max Dry System

• This precise and efficient drying system delivers beautifully dry dishes every time, including hard to dry items like champagne flutes

LED Illuminated Interior

• LED lighting illuminates the entire interior to load and unload dishes with ease

Steam & Sanitization

• Eliminate the need to pre-wash dishes at the end of every meal, thanks to Steam + Sanitize feature that easily loosens lingering traces of food with an added bonus of sanitization

Bottle & Silverware Jets

• Powerful jets designed and specifically located to clean hard to reach taller items, like bottles, and silverware

Intuitive LCD Touch Controls

• Easily select your cycle and customize wash and dry selections with the glass touch controls and brilliant LCD screen

Hard Food Disposer

• Designed to maintain a kitchen's cleanliness and efficiency, the hard food disposer with stainless steel blades grinds food into tiny particles that wash away with ease

WiFi Connected With SmartHQ

• Built-in WiFi and the SmartHQ app make it easy to control and monitor your dishwasher, wherever you are

Handles Sold Separately

• Elevate your dishwasher's look by selecting a Statement or Minimalist Collection handle

APPEARANCE
Handle	Minimalist or Statement purchased separately
Installation	True Flush
Handle Color	Stainless Steel
Door Style	Long Door with Top Controls
Door Appearance	Fully integrated door
Color Appearance	Stainless Steel
Design Style	Minimalist Collection

ECONOMICAL / QUIET
Door Insulation	Insulation, Mastic
Quiet Package	42 dBA
Outer Wrap	Bitumen, Full-wrap Blanket
Motor Type	Variable Speed
Quiet Features	43 dBA on regular cycle, Quiet Water Valve, Sealed Toe Kick, Tub Collar Trim

FEATURES
Wash System	800 Series
Sensor	Clean Sensor
Lower Rack	1 Rack handle, Ball-Tip Tines, Multi-Position Fold Down Tines
Tub Type	Tall Tub
Leveling System	Front Adjustable Leveling Legs
OU Certified	No
Number of Place Settings	16
Dishwasher Options	Bottle Wash, Delay Start 1-12 Hr., Heated Dry, Pre Soak, Sani (Certified to NSF Standard 184), Silverware Wash, Start/Reset, Wash TempBoost, Wash Zone Lower Only, Wash Zone Upper Only
Latch	Pull with Handle
Number of Options	11
Style	Built-In Top Control
Water Filtration System	100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray	Full 3rd rack (above upper rack)
Collection	Minimalist, Statement
Rack Features	2 Fold-Down Tines - Lower, 2 Utility Shelves with 2 Stem Safe - Upper, 3 Piece Silverware Basket with Soft Touch Handle, Adjustable Upper Rack, Ball-Tipped Tines
Floor Protection	Floor Protect with Alert
Dishwasher Cycles	1 Hour Wash & Dry, Auto, Crystal, Cycles Plus, Dishwasher Cleaning, Favorites, Intense, Normal, PrepRinse
Short Description	Fully Integrated Dishwasher with Minimalist Handle
Rack Color	Silver
Dispenser	Electronic Low Rinse Aid Sensor, Rinse Aid with Indicator and Adjustment
WiFi Connect	Built-In
Control Type	Cap Touch Controls, Top Controls
Racking System	Full 3rd rack
Dishwasher Drying Features	2 Fans/Extra Heater, Fan Dry On/Off plus Max Dry
Interior Lighting	LED
Wash Arms	3 Pressurized Wash Arms, 90+ Spray Jet Wash System, Bottle Wash Jets, Jets - Variable Pressure, Lower - Reversing Blade, Middle - Blade, Silverware Wash Jets
Wash System Features	90+ Spray Jet Wash System, Automatic Temperature Control, Bottle Wash Jets, Dedicated Silverware Jets, Deep Clean Silverware Jets, Hard Food Disposer with removable filter, Hidden Heater, Middle Wash Arm, Reversing Blade Lower Wash Arm, Variable Speed Dual Pumps and Motors
Connected Features	1/2 Load Wash Zones, Bottle Wash Jets, Child Lock, Dishwasher Cleaning, Rinse, Smart Assist II
Exterior Style	Stainless Steel
Product Type	Built-In
Connected Capabilities	Amazon Alexa, Amazon Dash Replenishment, Google Home, IFTTT, Sonos, The Google Assistant
Upper Rack	1 Rack handle, 1/2 fixed tines, 1/2 fold down tines, 2 Stem Safe Shelves, Ball-Tip Tines, Premium Height Adjustable
Dishwasher Control Features	Audible End-of-Cycle Signal, Hi-Resolution Color LCD Control Display with Cycle Status Bar on door, Last Cycle Memory
Number of Cycles	7
Tub and Door Liner	Stainless Steel
Sabbath Mode	Yes
Showroom Power Mode	Yes

POWER / RATINGS
Power Connection	Factory installed - w/offset flat plug, optional hardwire kit WD21X23559
Hertz	60
Electrical Requirements	120 V; 60 Hz; 10.2 A
Watts	1296
Calrod Heater Watts	1200

WARRANTY
Labor Warranty	Limited 2-year entire appliance
Warranty Notes	Limited 5-year rack and electronic control, Ltd Lifetime SS tub and inner door
Parts Warranty	Limited 2-year entire appliance

WEIGHTS & DIMENSIONS
Height w/ Legs Retracted - Minimum Height	33.375 in
Overall Depth	24 in
Cabinet Width	24 in
Net Weight	126 lb
Overall Width	23.75 in
Approximate Shipping Weight	139 lb
Overall Height	34 in
Height w/Legs Extended - Maximum Height	34.625 in
